Eureka Garnet Discovery Series Freestanding Wood Heater

Calculate Shipping

Free pick-up from store - $0.00
Pick up from: 75 Grafton Street, Warwick Qld 4370 available Monday - Friday 8.30am - 5pm or Sat 8.30am - 12pm

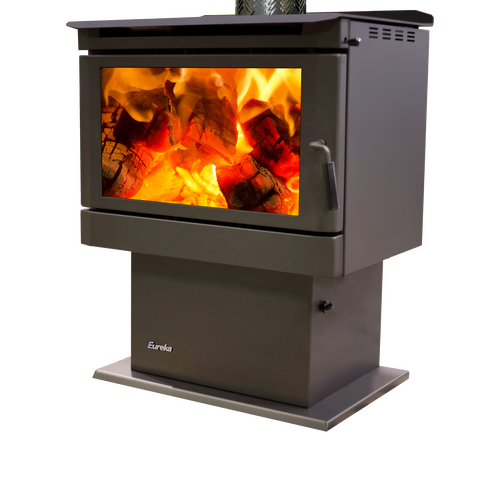

EUREKA GARNET FREE STANDING WOOD HEATER

The huge firebox of this unit is designed to heat those very large areas of your home. This powerful heater requires a 175mm flue kit when installed, and has a massive firebox for those big logs of firewood. The Eureka Garnet can provide your heating solutions.

Features

Heavy duty 3 speed fan
Firebrick lined firebox
8mm steel baffle plate
Large glass viewing area
Made in Australia

Dimensions

Capacity: Up to 320m2.

Height: 1008mm

Width: 782mm

Depth: 570mm

Weight: 202kg

Emissions: 1.3g

Efficiency: 65%

Output: 24kw

Hearth Specifications

Hearth Type: Full

Hearth Size: W1020mm D1100mm T20mm (450mm in front of heater base)

Solid Flue: 7”

(222372CH)

SKU	222372CH
Brand	Eureka
Shipping Weight	202.0000kg
Shipping Width	0.690m
Shipping Height	1.040m
Shipping Length	0.910m
Shipping Cubic	0.653016000m3
Heating Type	Convection
Base Style	Pedestal
Fan	Standard 3 speed fan
Cook Top	No
Ash Pan	No
Finish	High Temperature Stove Paint (Charcoal)
Heating Capacity	320m² or 34 Squares 24kW
Dimensions (mm) height x width x depth	1008mm H x 782mm W x 570mm D
Emissions - g/kg	1.3g/kg
Efficiency	65%
Firebox Material	5mm Steel
Baffle Material	8mm Steel
Firebox Side Lining	Bricks
Firebox Base Lining	Nil
Door Opening Size (mm)	622mm x 309mm
Flue Diameter	175mm / 7"
Weight (kg)	185kg
Domestic Boiler/Wetback	No Option
Warranty	10 Year Limited Warranty
Made In	Australia
Min Clearance - Rear Wall (mm)	150mm
Min Clearance - Side Wall (mm)	450mm
Min Clearance - Corner Installation (mm)	200mm
Minimum Hearth Size - Flat Wall Installs	1020mm x 1100mm
Hearth Required Forward of Door Opening	450mm
Min Hearth Thickness (mm)	20mm
Please Note	Hearths, Fluing, Accessories and Installation are not included in our pricing. The heating capacity stated is a guide only and may vary from region to region depending upon ambient temperatures and your house design. Information provided has been sourced from our suppliers, whilst we endeavour to remain updated manufacturers can and do have the right to alter specifications without our knowledge. We provide this information as a service only, please check with the manufacturer for additional information.
